KYOCERA Precision Tools

CA025P

Next Generation CVD Grade for Steel Turning

Download Brochure Locate Distributor

Next Generation Coating Technology

Maximize steel cutting performance with ultra-durable new CVD insert grade

  • Positive Inserts Added to the Lineup

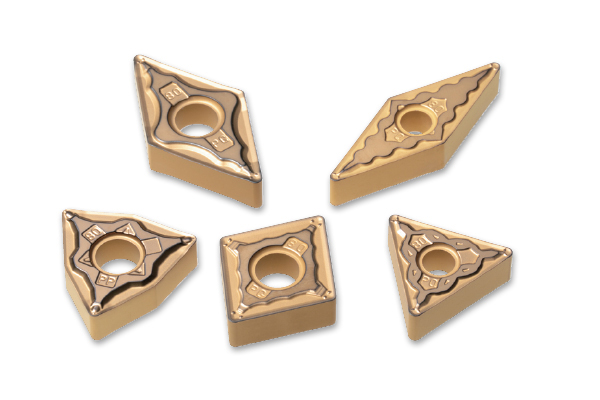

CA025P Inserts

Wide Range of Chipbreaker Styles Available

The CA025P grade comes in a variety of chipbreakers to get the job done whether you are roughing at heavy depths of cut or finishing the workpiece at high feed rates.

Improved Wear Resistance with New CVD Grade for Steel

Thickened alumina with good thermal resistance (twice as thick as conventional coating) and improved plastic deformation resistance by increased temperature strength

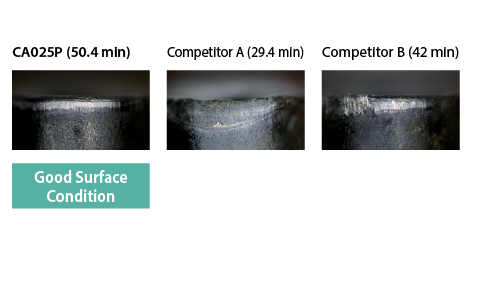

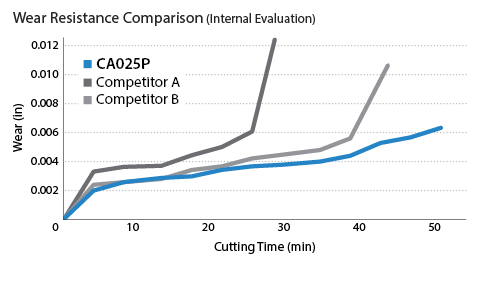

Wear Resistance Comparison Wear Resistance Comparison Images

Cutting Conditions: Vc = 980 sfm, D.O.C. = 0.059", f = 0.012 ipr, Wet, Workpiece: 4137

Wear and Deformation Resistance

CA025P maintains smooth and flat surface with stable tool life

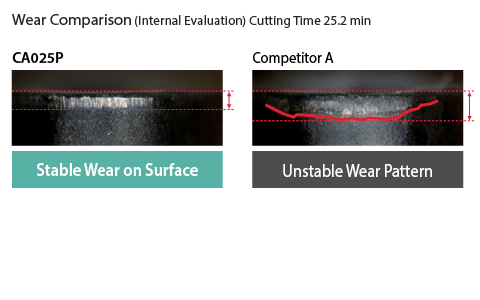

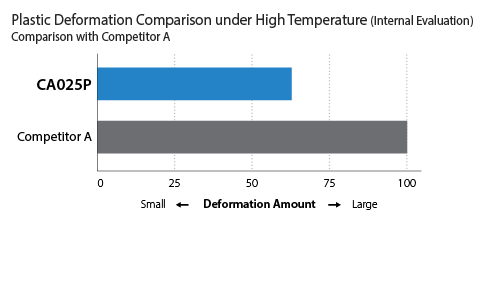

Wear Comparison Deformation Comparison

Cutting Conditions: Vc = 980 sfm, D.O.C. = 0.059", f = 0.012 ipr, Wet, Workpiece: 4137

Excellent Fracture Resistance and Adhesion Resistance

New substrate with high stability provides excellent chipping resistance

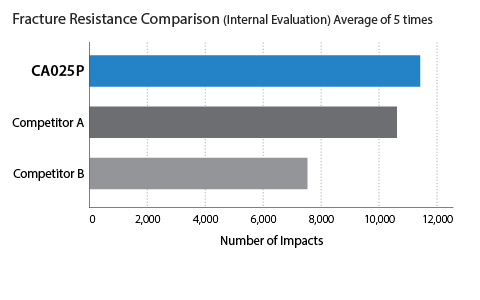

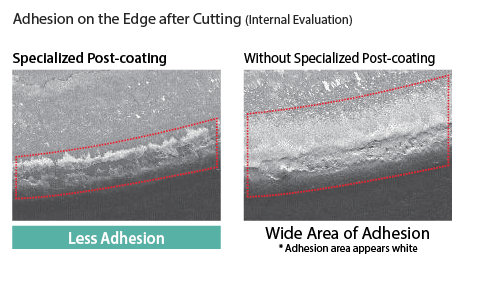

Fracture Resistance Comparison Adhesion Resistance Comparison

Cutting Conditions: Vc = 820 sfm, D.O.C. = 0.059", f = 0.014 ipr, Wet, Workpiece: 4140 (with 4 slots)

Wide Range of Chipbreakers

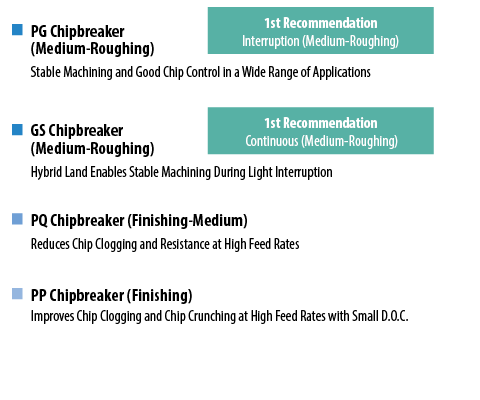

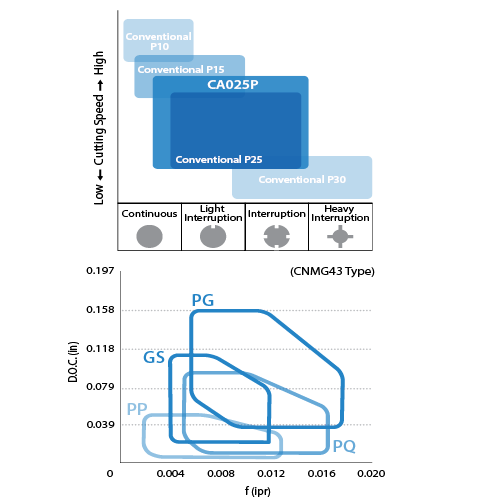

Chipbreaker Features Chipbreaker Maps

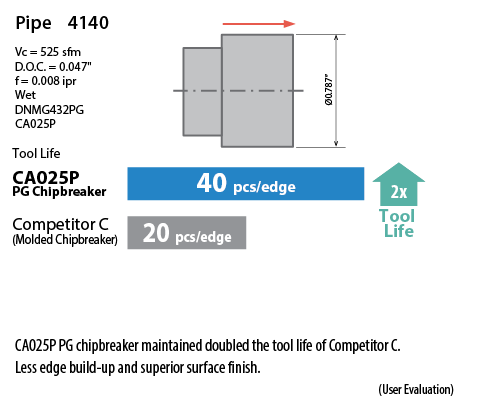

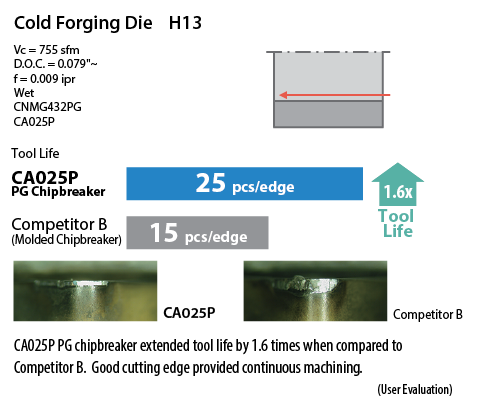

Case Studies

Fracture Resistance Comparison Adhesion Resistance Comparison

Ready to make a purchase?

Kyocera Precision Tools are sold through authorized distributors throughout North America

Contact a distributor nearest you below
