KYOCERA Precision Tools

CCX

CVD Coated Cermet for Finishing

Download Brochure Steel Finishing Study

HIGH STRENGTH FOR HIGHER PRODUCTIVITY

The excellent wear resistant CCX turning grade is built for long tool life
when high-speed finishing in soft steel, general steel, and cast iron

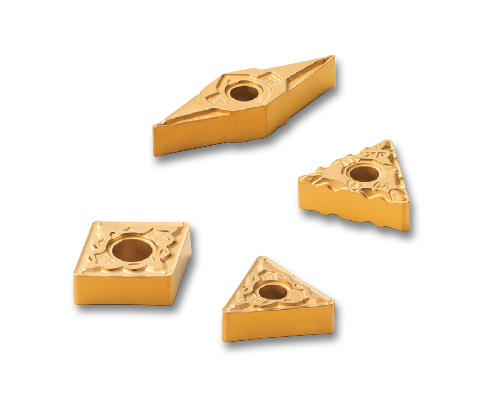

  • Positive Inserts Added

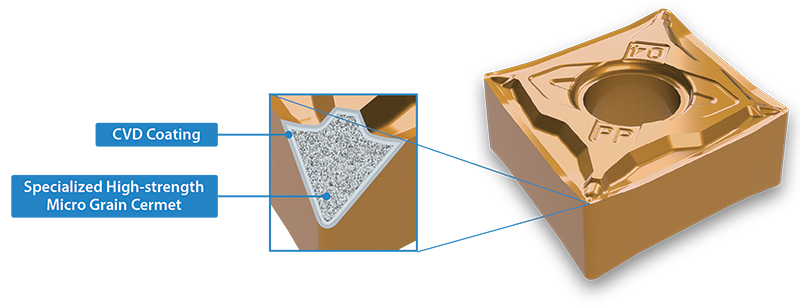

CVD Coating Diagram

NEW CVD COATED CERMET TECHNOLOGY

The unique design of the CCX cermet grade with a thick CVD coating is difficult to accomplish using conventional technology. This process provides greater wear resistance at higher cutting speeds.

Excellent High-Speed Finishing Leads to Greater Productivity

Wide range of cutting speeds from general to high-speeds provide long tool life in various finishing applications

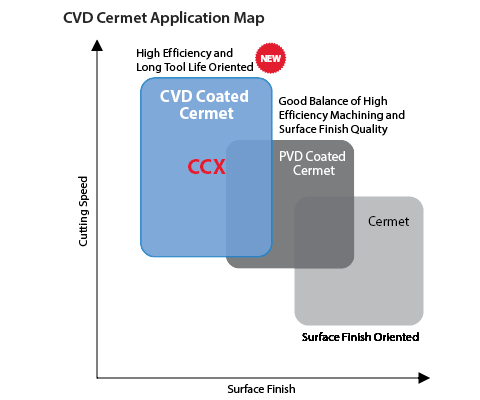

Insert Display Application Map

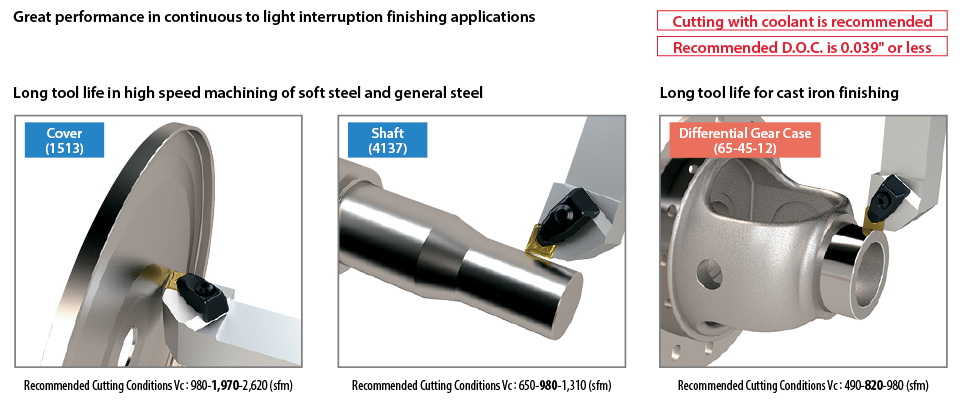

CCX Application Examples

Great performance in continuous to light interruption finishing applications

Application Examples

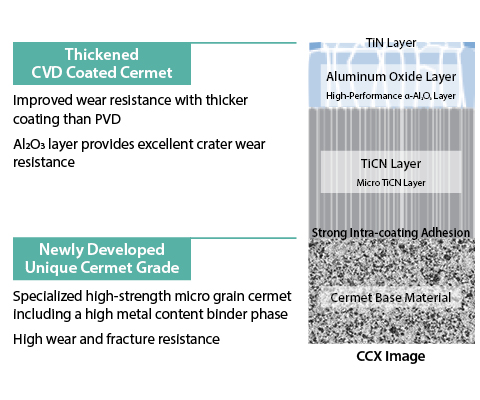

Combination of Cermet and a CVD Coating Provides High-Speed Machining

Newly developed unique cermet grade with thick CVD coating which is difficult to accomplish using conventional technology. High-speed machining and long tool life is possible with superior wear and chipping resistance.

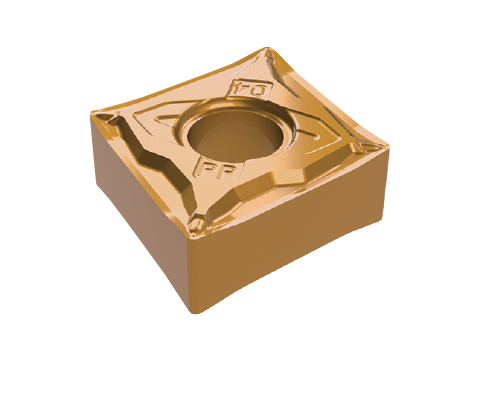

Coating Layout Insert

Superior Wear Resistance to PVD Coated Cermets

In low carbon steel, CCX shows better wear resistance when compared to competitors even in high-speed cutting conditions

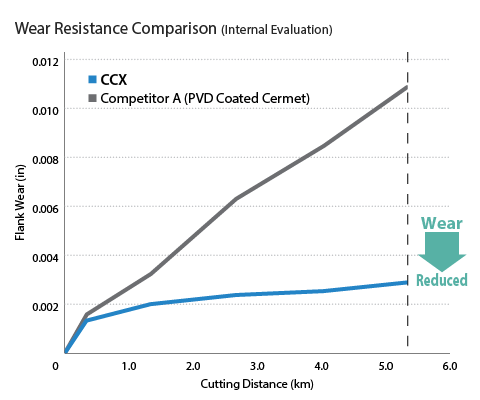

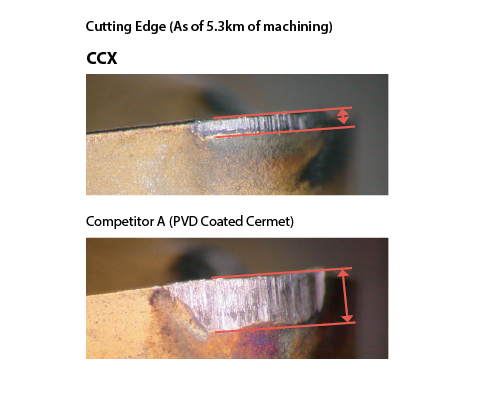

Wear Resistance Comparison Cutting Edge Wear

Cutting Conditions: Vc = 3,280 sfm, D.O.C. = 0.010", f = 0.006 ipr, Wet, CNMG432 Type, Facing, Workpiece: Low Carbon Steel
