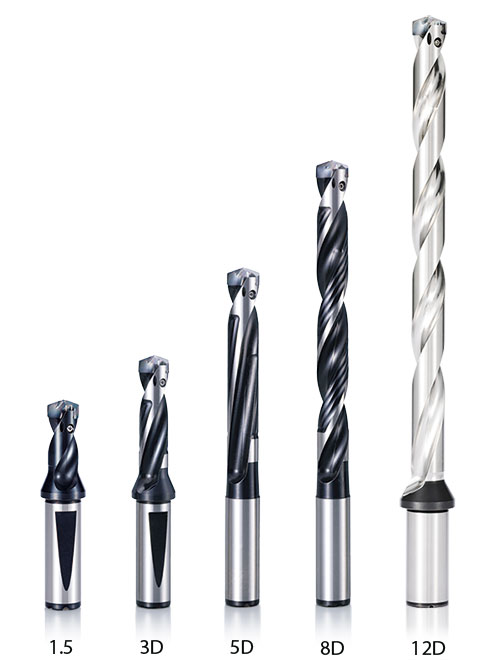

DRA Magic Drill
High Efficiency Modular Drill
Download Brochure Where to BuyWHERE THE MAGIC HAPPENS...
Increase holemaking efficiency with one of Kyocera's most popular drills. Achieve perfect holes every time with excellent hole accuracy and a low cutting force design. Used heavily in the automotive and aerospace industry, this series is built to provide high-quality holemaking solutions in steel, stainless steel, cast iron, and heat-resistant alloys.
5 Unique Insert Designs for a Full Range of Holemaking Applications
NEW FTP-H Insert for Steel Beam Drilling

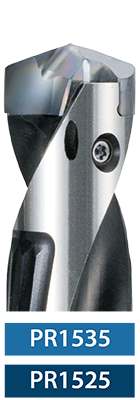

GM
General Purpose
1st Choice for General Purpose Steel & Stainless Steel Machining
Ø0.313" - Ø1.299"
Ø7.94mm - Ø33mm

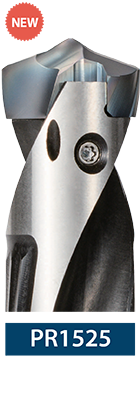

HQP
Double-Margin
High-Precision Insert for Steel Machining
Ø0.313" - Ø0.783"
Ø7.94mm - Ø19.90mm

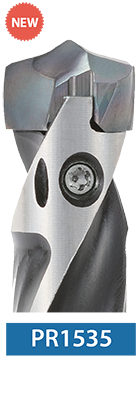

HQS
Double-Margin
High-Precision for Difficult-to-cut Materials & Stainless Steel Machining
Ø0.315" - Ø0.768"
Ø8.00mm - Ø19.50mm

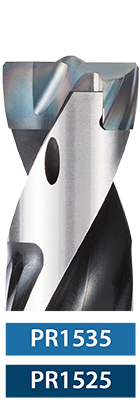

FTP
Double-Margin
Flat Bottom Insert for Counterboring
Ø0.315" - Ø1.000"
Ø8.00mm - Ø25.40mm

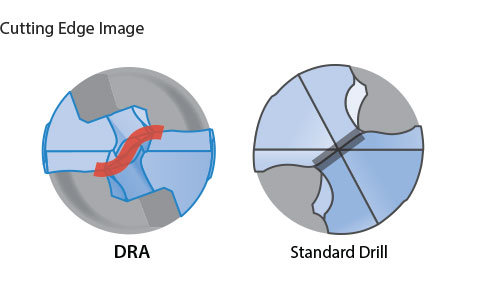

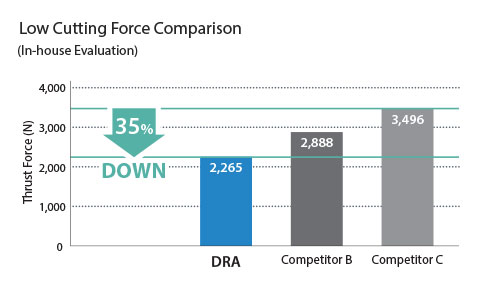

Low Cutting Force Design Improves Hole Accuracy
The special chisel edge with S-curve reduces thrust force and controls vibration.
Cutting Conditions : Vc = 390sfm, f = 0.010ipr, Drilling Diameter ∅0.551", Drilling Depth 1.772", Wet

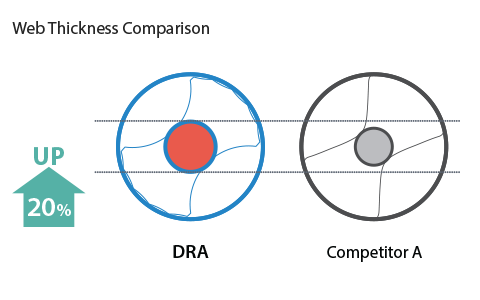

Optimal Web Thickness Limits Deflection

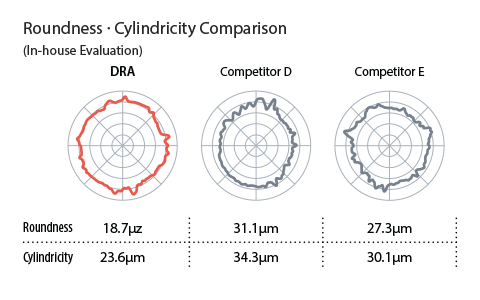

The hole accuracy is improved by controlling drill deflection with a 20% thicker web compared with Competitor A.
Cutting Conditions : Vc = 390sfm, f = 0.012ipr Drilling Diameter ∅0.551", Measurement Position 2.165", Wet Workpiece : 1049 Steel

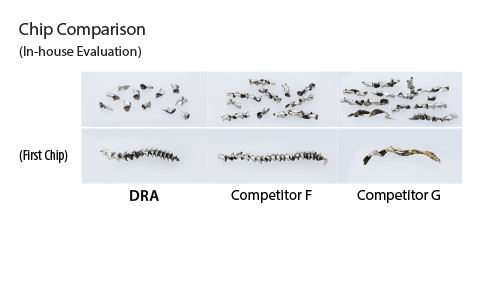

Fine Chip Breaking Even in Deep Hole Drilling Applications

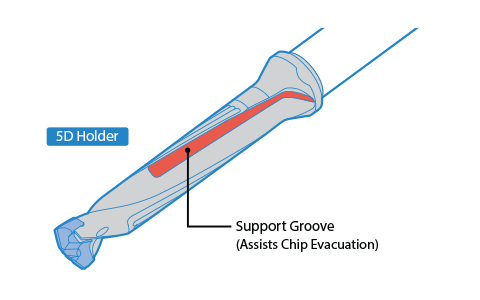

Support Groove with Wider Flute (5D, 8D) Enables Smooth Chip Evacuation
Cutting Conditions : Vc = 200sfm, f = 0.008ipr, Drilling Diameter ∅0.551", Drilling Depth 2.756", Wet, Workpiece : 304 Stainless Steel

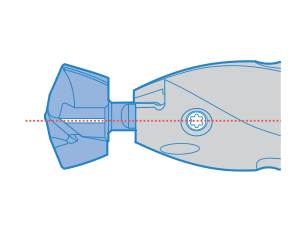

Easy Insert Replacement
Replace Insert Without Removing Screw
Replace insert without removing screw

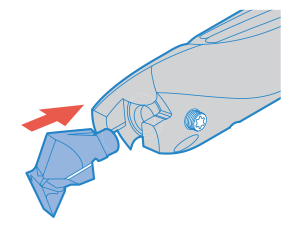

Install the insert onto toolholder
(Align insert guide line with screw position)

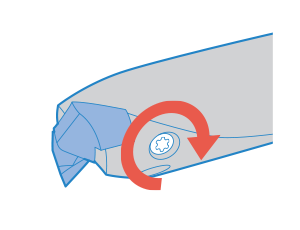

Fix the insert by tightening the screw
PR1535 MEGACOAT NANO
MEGACOAT NANO Grade PR1535 for stable machining of steel and stainless steel applications
23% Improved Fracture Toughness
An increase in cobalt content yields a substrate with greater toughness. Fracture toughness values are improved by 23% over previous grades.
Stability Improvement
The coarse grain structure and uniform particle size correspond to improved heat resistance, with conductivity values decreased by 11%. The uniform structure also reduces crack propagation.
