KYOCERA Precision Tools

DRV Magic Drill

High Efficiency Indexable Drill

Download Brochure Locate a Distributor

Built for Speed and Accuracy

Excellent chip evacuation with 6xD maximum deep-hole drilling
Economical inserts with 4 cutting edges

  • Expanded diameters from 0.500"-2.000" and 12mm-60mm

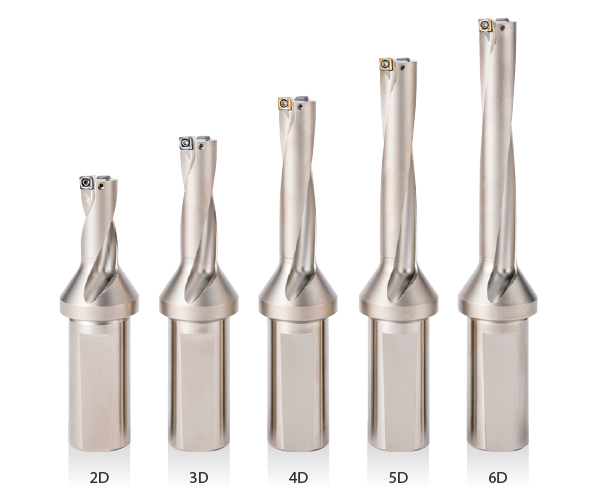

DRV Image

Excellent Drilling Precision with Less Variation in Cutting Diameter

Optimal web thickness and low cutting force design reduces chattering

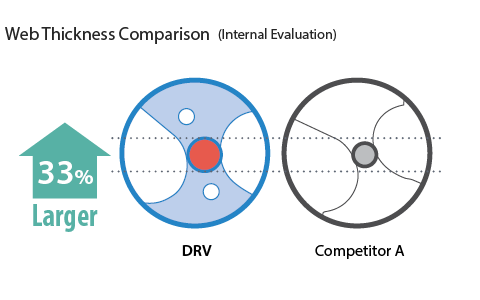

Web thickness comparison Cutting diameter variation comparison

Cutting Conditions: Vc = 490sfm, f = 0.0024ipr, Drilling Diameter ∅0.812" (5D), Wet, Workpiece: 1049

Unique Insert Design to Control Chip Flow

Smooth chip evacuation with compact chips

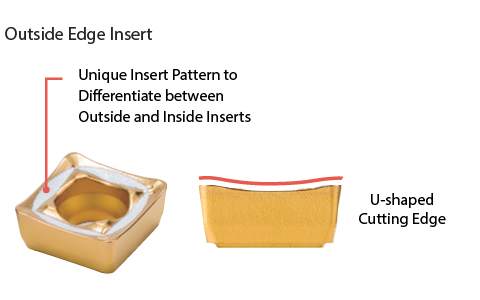

Outside edge insert Inside edge insert

New Insert Grades Developed for Drilling

High speed machining with the combination of CVD (outer edge) and PVD (inner edge) inserts

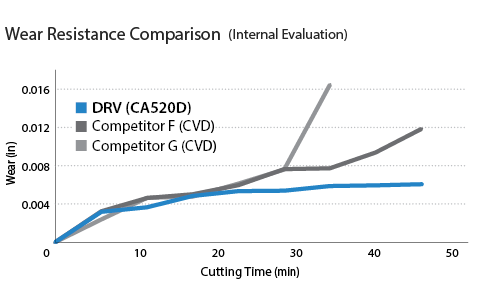

Recommended Cutting Conditions Wear Resistance Comparison

Cutting Conditions: Vc = 660sfm, f = 0.0047ipr, Drilling Diameter ∅0.812" (3D), Wet, Workpiece: 4140H

4 Types of Chipbreakers for Various Machining Applications

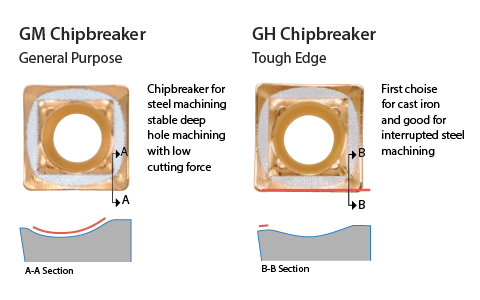

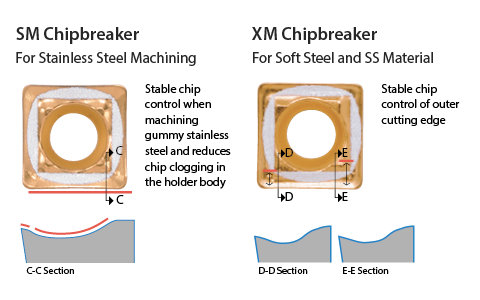

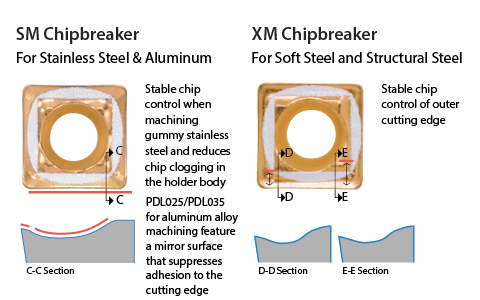

GM and GH Chipbreakers SM and XM Chipbreakers
