MFH-RAPTOR

High feed milling with larger D.O.C.

Download Brochure Locate a Distributor

MAXIMUM EFFICIENCY
New High-Feed Milling Capable of Larger Depths of Cut

Excellent performance in various applications, including Automotive Parts, difficult-to-cut materials, and mold machining

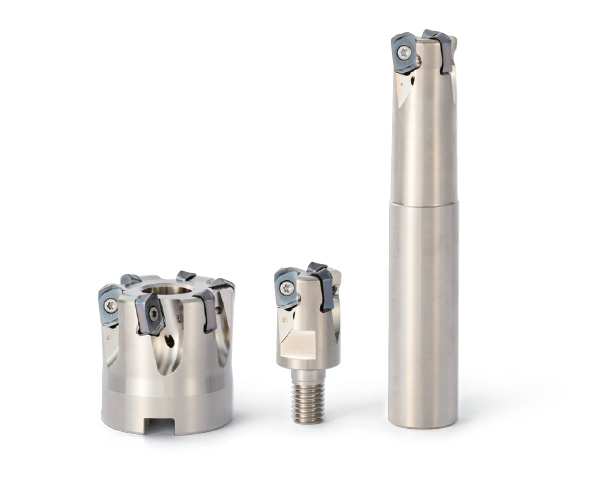

MFH-MAX

TABLE FEED vs METAL REMOVAL RATE

Selecting the best high-feed cutter for the job can be difficult. We put these cutters to the test in a typical scenario so you can see what needs to be considered when selecting a high-feed cutter that meets your demands.

Check out the Results!

High feed milling with large depth of cut capabilities

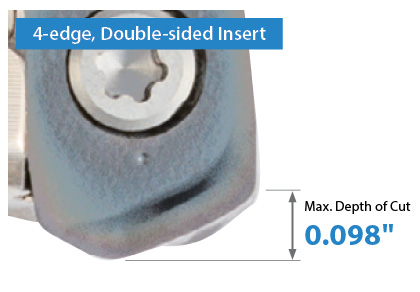

A small 4-edge, double-sided insert supports depths of cut up to 0.098" (2.5mm) with cutting diameters available from Ø1.000" and Ø22mm.

Achieves high efficiency machining in various shouldering, slotting, helical milling, and ramping applications.

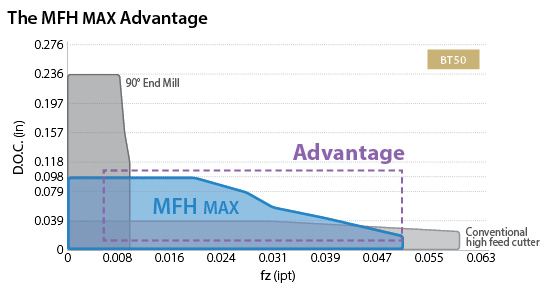

4-edge Double-sided insert The MFH Max Advantage

Vc = 490 sfm, ae = 0.500" (ae/DCX = 50%), 1049 Dry Ø1.000" Overhang length 2.362" BT50

Better alternative to conventional 90° end mills

(Roughing to Medium-Finishing)

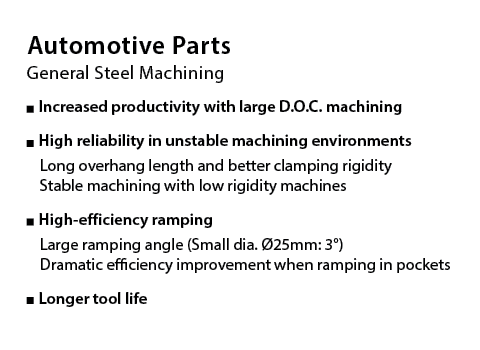

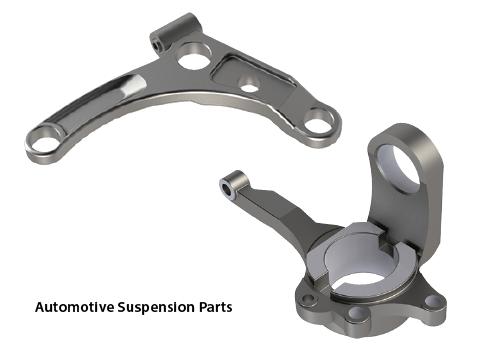

Machining Automotive Parts Automotive Parts

More capabilitites than conventional high-feed cutters

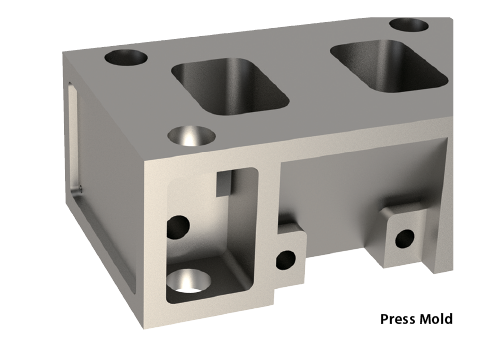

Machining General Parts / Molds Press Mold Part

Excellent Solution for Machining Difficult-to-cut Materials

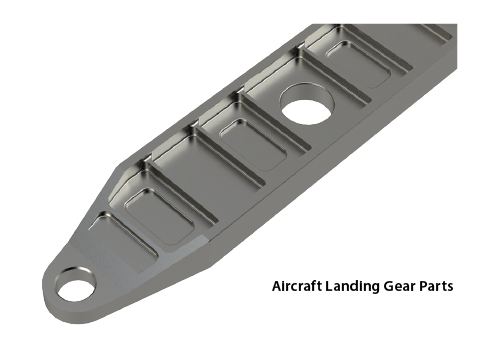

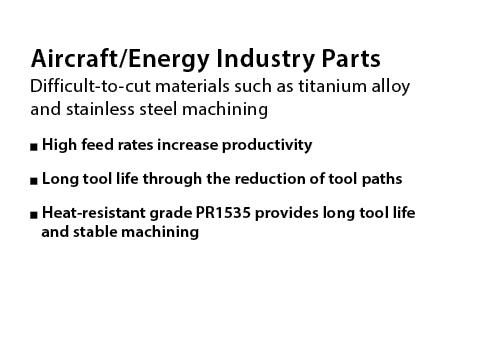

Machining Aircraft/Energy Parts Aircraft Landing Gear Parts

PR1535 MEGACOAT NANO

MEGACOAT NANO Grade PR1535 for stable machining of difficult-to-cut materials such as heat-resistant alloy, titanium alloy and precipitation hardened stainless steel

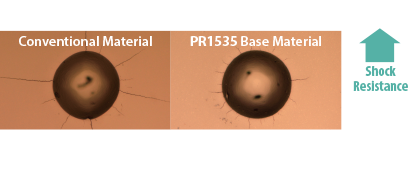

23% Improved Fracture Toughness

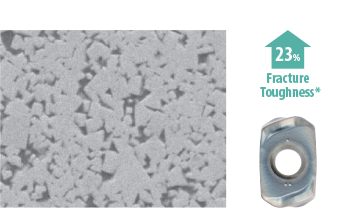

An increase in cobalt content yields a substrate with greater toughness. Fracture toughness values are improved by 23% over previous grades.

Stability Improvement

The coarse grain structure and uniform particle size correspond to improved heat resistance, with conductivity values decreased by 11%. The uniform structure also reduces crack propagation.

CVD Coated Carbide

CA6535

Wear Resistance
Oriented

MEGACOAT NANO

PR1535

For Heat-Resistant Alloys,
Titanium and Stainless Steel

MEGACOAT NANO

PR1525

For Steel

MEGACOAT NANO

PR1510

For Cast Iron
