MFH-RAPTOR

Time to FEED...

Download Brochure Locate a Distributor

Kyocera's most versatile high-feed milling series

Chatter resistant and highly efficient in roughing applications

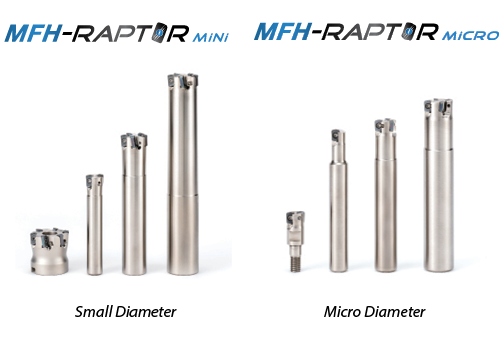

MFH-RAPTOR Products MFH-RAPTOR Products

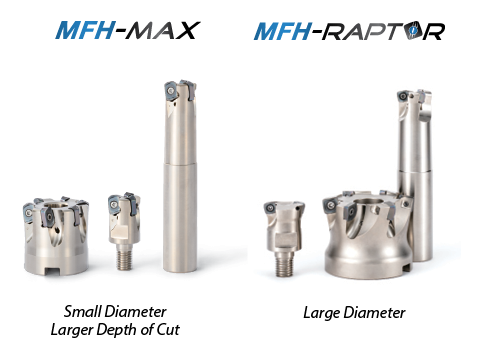

  • MFH-MAX High Feed Milling with a Larger Depth of Cut
Check out the MAX!

TABLE FEED vs METAL REMOVAL RATE

Selecting the best high-feed cutter for the job can be difficult. We put these cutters to the test in a typical scenario so you can see what needs to be considered when selecting a high-feed cutter that meets your demands.

Check out the Results!

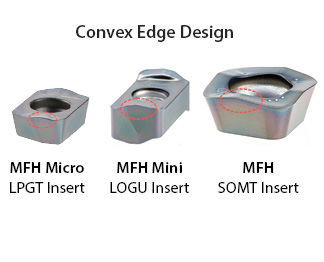

Reduced chattering with convex cutting edge design

Reduces cutting forces at initial impact with a convex helical edge design

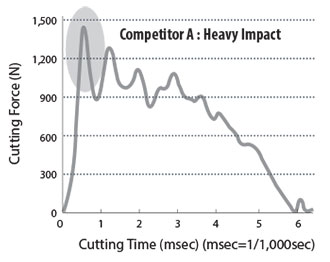

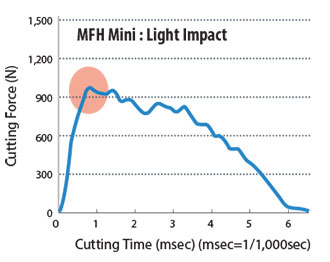

Cutting force and vibration when approaching the workpiece (D.O.C. = Half of Cutter Diameter)

Cutting Conditions: Cutter Dia. Dc = ∅0.625" , Vc = 490 sfm, fz = 0.024 ipt, D.O.C. = 0.020" (20 Passes): Total 0.394" × 0.630", Dry Workpiece: Stainless Steel

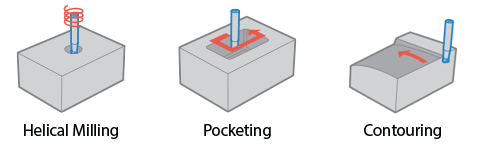

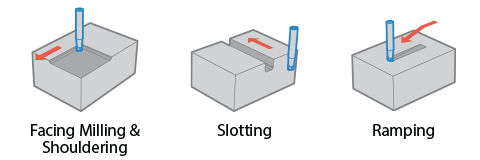

Wide application range for multiple metalworking processes

4 unique insert designs offer a variety of machining options

GM (General Milling)

1st Choice for General Purpose
Multiple Processes

GH

Tough Edge
Excellent Fracture Resistance

LD

1st Choice for Large D.O.C.
Available for Scale Removal

FL

Wiper Edge
Roughing and Finishing Even in Low Horsepower Machining Centers

PR1535 MEGACOAT NANO

MEGACOAT NANO Grade PR1535 for stable machining of difficult-to-cut materials such as heat-resistant alloy, titanium alloy and precipitation hardened stainless steel

23% Improved Fracture Toughness

An increase in cobalt content yields a substrate with greater toughness. Fracture toughness values are improved by 23% over previous grades.

Stability Improvement

The coarse grain structure and uniform particle size correspond to improved heat resistance, with conductivity values decreased by 11%. The uniform structure also reduces crack propagation.

CVD Coated Carbide

CA6535

Wear Resistance
Oriented

MEGACOAT NANO

PR1535

For Heat-Resistant Alloys,
Titanium and Stainless Steel

MEGACOAT NANO

PR1525

For Steel

MEGACOAT NANO

PR1510

For Cast Iron

MEGACOAT HARD

PR015S

For Hardened Steel

Word on the street...

Testimonial

"When our sales rep brought this tool in for a test, I was skeptical of just another sales pitch. My operators called me over when they ran it to show me how awesome it was. 300ipm at 0.070 DOC on 1018 steel. Nice chips. Cool tool!
We bought it."

Scott

Machine Shop Supervisor

AGRITEK

Testimonial

"We have slashed our machine time in half and are really pleased after implementing the MFH-Raptor into our production runs. We have had nothing but great results."

Scott

MOLDS & DIES L.T.D. L.C.

Testimonial

"I chose the MFH6000R-14-8T, a six inch diameter feed mill, which has increased my metal removal rate and also allows me to extend the spindle 22 inches into the part without vibration or reduced tool life. Competitors have come in to look at the job, they want to test against the MFH, but never return."

Dustin

PLANT MACHINE WORKS
