Printed Circuit Board Series 2390
Series 2390
Flash Updraft Fish Tail Routers
Chipbreaker style updraft router designed for high stack routing with superior edge finish on external cuts.

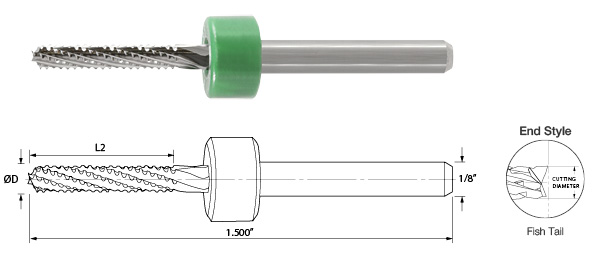

Diameter Range
0.0938" - 0.1250"
STANDARD Flute Length (Inch)
| Part Number |
Router Size |
Dimensions (in) | End Style |
|
| Cutting Dia. (ØD) |
Flute Length (L2) |
|||
| 2390.0938.500 | 3/32" | 0.0938 | 0.495 | Fish Tail |
| 2390.1250.590 | 1/8" | 0.1250 | 0.585 | Fish Tail |
Part Numbers above include rings set at 0.800"
For Ringless Part Number, replace series "." with "-" (XXX-XXXX.XXXX)
Additional diameters and special ring colors available upon request
