Printed Circuit Board Series 4100
Series 4100
Cross Cut Updraft Drill Point Routers

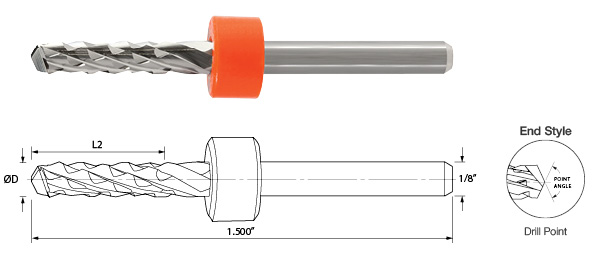

Diamond cut style updraft router designed for high productivity routing.
Diameter Range
0.0625" - 0.1250"
0.80mm - 2.55mm
STANDARD Flute Length (Inch)
| Part Number |
Router Size |
Dimensions (in) | End Style |
|
| Cutting Dia. (ØD) |
Flute Length (L2) |
|||
| 4100.0625.315D | 1/16" | 0.0625 | 0.315 | Drill Point |
| 4100.0938.394D | 3/32" | 0.0938 | 0.394 | Drill Point |
| 4100.1250.472D | 1/8" | 0.1250 | 0.472 | Drill Point |
STANDARD Flute Length (Metric)
| Part Number |
Router Size |
Dimensions (mm) | End Style |
|
| Cutting Dia. (ØD) |
Flute Length (L2) |
|||
| 4100.0315.197D | 0.80mm | 0.800 | 5.00 | Drill Point |
| 4100.0354.197D | 0.90mm | 0.900 | 5.00 | Drill Point |
| 4100.0394.256D | 1.00mm | 1.000 | 6.50 | Drill Point |
| 4100.0472.276D | 1.20mm | 1.200 | 7.00 | Drill Point |
| 4100.0500.276D | 1.27mm | 1.270 | 7.00 | Drill Point |
| 4100.0709.315D | 1.80mm | 1.800 | 8.00 | Drill Point |
| 4100.0748.315D | 1.90mm | 1.900 | 8.00 | Drill Point |
| 4100.0787.315D | 2.00mm | 2.000 | 8.00 | Drill Point |
| 4100.0906.394D | 2.30mm | 2.300 | 10.00 | Drill Point |
| 4100.0984.394D | 2.50mm | 2.500 | 10.00 | Drill Point |
| 4100.1004.394D | 2.55mm | 2.550 | 10.00 | Drill Point |
Part Numbers above include rings set at 0.800"
For Ringless Part Number, replace series "." with "-" (XXX-XXXX.XXXX)
Additional diameters and special ring colors available upon request
