Printed Circuit Board Series 100

Series 100

Medium Non-Undercut Drills

Small and medium sized drills with extended flute lengths capable of drilling medium and high stacks for improved utilization.


Diameter Range
0.0200" - 0.1250"
0.50mm - 3.15mm

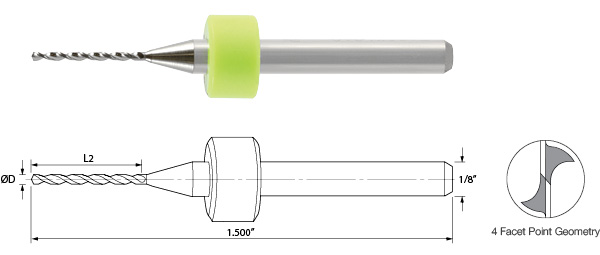

Series 100 Diagram

EXTENDED Flute Length (Inch)

130 Degree Point 165 Degree Point Right Hand 2 Flute
Part
Number		 Drill
Size		 Dimensions (in) Point
Angle
Cutting Dia.
(ØD)		 Flute Length
(L2)
100.0200.360 #76 0.0200 0.3600 130°
100.0210.360 #75 0.0210 0.3600 130°
100.0225.360 #74 0.0225 0.3600 130°
100.0240.400 #73 0.0240 0.4000 130°
100.0250.400 #72 0.0250 0.4000 130°
100.0260.400 #71 0.0260 0.4000 130°
100.0280.400 #70 0.0280 0.4000 130°
100.0292.400 #69 0.0292 0.4000 130°
100.0310.400 #68 0.0310 0.4000 130°
100.0320.400 #67 0.0320 0.4000 130°
100.0330.400 #66 0.0330 0.4000 130°
100.0350.400 #65 0.0350 0.4000 130°
100.0360.400 #64 0.0360 0.4000 130°
100.0370.400 #63 0.0370 0.4000 130°
100.0380.400 #62 0.0380 0.4000 130°
100.0390.400 #61 0.0390 0.4000 130°
100.0400.400 #60 0.0400 0.4000 130°
100.0410.400 #59 0.0410 0.4000 130°
100.0420.400 #58 0.0420 0.4000 130°
100.0430.400 #57 0.0430 0.4000 130°
100.0465.400 #56 0.0465 0.4000 130°
100.0520.400 #55 0.0520 0.4000 130°
100.0550.400 #54 0.0550 0.4000 130°
100.0595.400 #53 0.0595 0.4000 130°
100.0625.400 1/16" 0.0625 0.4000 130°
100.0635.400 #52 0.0635 0.4000 130°
100.0670.400 #51 0.0670 0.4000 130°
100.0700.400 #50 0.0700 0.4000 130°
100.0730.400 #49 0.0730 0.4000 130°
100.0760.400 #48 0.0760 0.4000 130°
100.0781.400 5/64" 0.0781 0.4000 130°
100.0785.400 #47 0.0785 0.4000 130°
100.0810.400 #46 0.0810 0.4000 130°
100.0820.400 #45 0.0820 0.4000 130°
100.0860.400 #44 0.0860 0.4000 130°
100.0890.400 #43 0.0890 0.4000 130°
100.0935.400 #42 0.0935 0.4000 130°
100.0938.400 3/32" 0.0938 0.4000 130°
100.0960.400 #41 0.0960 0.4000 130°
100.0980.400 #40 0.0980 0.4000 130°
100.0995.400 #39 0.0995 0.4000 130°
100.1015.400 #38 0.1015 0.4000 165°
100.1040.400 #37 0.1040 0.4000 165°
100.1065.400 #36 0.1065 0.4000 165°
100.1094.400 7/64" 0.1094 0.4000 165°
100.1100.400 #35 0.1100 0.4000 165°
100.1110.400 #34 0.1110 0.4000 165°
100.1130.400 #33 0.1130 0.4000 165°
100.1160.400 #32 0.1160 0.4000 165°
100.1200.400 #31 0.1200 0.4000 165°
100.1250.394 1/8" 0.1250 0.3940 130°
100.1250.400 1/8" 0.1250 0.4000 165°

EXTENDED Flute Length (Metric)

130 Degree Point 165 Degree Point Right Hand 2 Flute
Part
Number		 Drill
Size		 Dimensions (mm) Point
Angle
Cutting Dia.
(ØD)		 Flute Length
(L2)
100.0197.360 0.50mm 0.500 9.14 130°
100.0217.360 0.55mm 0.550 9.14 130°
100.0236.360 0.60mm 0.600 9.14 130°
100.0256.400 0.65mm 0.650 10.16 130°
100.0276.400 0.70mm 0.700 10.16 130°
100.0295.400 0.75mm 0.750 10.16 130°
100.0315.400 0.80mm 0.800 10.16 130°
100.0335.400 0.85mm 0.850 10.16 130°
100.0354.400 0.90mm 0.900 10.16 130°
100.0374.400 0.95mm 0.950 10.16 130°
100.0394.400 1.00mm 1.000 10.16 130°
100.0413.400 1.05mm 1.050 10.16 130°
100.0433.400 1.10mm 1.100 10.16 130°
100.0441.400 1.12mm 1.120 10.16 130°
100.0453.400 1.15mm 1.150 10.16 130°
100.0472.400 1.20mm 1.200 10.16 130°
100.0492.400 1.25mm 1.250 10.16 130°
100.0512.400 1.30mm 1.300 10.16 130°
100.0531.400 1.35mm 1.350 10.16 130°
100.0551.400 1.40mm 1.400 10.16 130°
100.0571.400 1.45mm 1.450 10.16 130°
100.0591.400 1.50mm 1.500 10.16 130°
100.0610.400 1.55mm 1.550 10.16 130°
100.0630.400 1.60mm 1.600 10.16 130°
100.0650.400 1.65mm 1.650 10.16 130°
100.0669.400 1.70mm 1.700 10.16 130°
100.0689.400 1.75mm 1.750 10.16 130°
100.0709.400 1.80mm 1.800 10.16 130°
100.0728.400 1.85mm 1.850 10.16 130°
100.0748.400 1.90mm 1.900 10.16 130°
100.0768.400 1.95mm 1.950 10.16 130°
100.0787.400 2.00mm 2.000 10.16 130°
100.0807.400 2.05mm 2.050 10.16 130°
100.0827.400 2.10mm 2.100 10.16 130°
100.0846.400 2.15mm 2.150 10.16 130°
100.0866.400 2.20mm 2.200 10.16 130°
100.0886.400 2.25mm 2.250 10.16 130°
100.0906.400 2.30mm 2.300 10.16 130°
100.0925.400 2.35mm 2.350 10.16 130°
100.0945.400 2.40mm 2.400 10.16 130°
100.0965.400 2.45mm 2.451 10.16 130°
100.0984.400 2.50mm 2.500 10.16 130°
100.1004.394 2.55mm 2.550 10.00 130°
100.1004.400 2.55mm 2.550 10.16 165°
100.1024.394 2.60mm 2.600 10.00 130°
100.1024.400 2.60mm 2.600 10.16 165°
100.1043.394 2.65mm 2.649 10.00 130°
100.1043.400 2.65mm 2.649 10.16 165°
100.1063.394 2.70mm 2.700 10.00 130°
100.1063.400 2.70mm 2.700 10.16 165°
100.1083.394 2.75mm 2.750 10.00 130°
100.1083.400 2.75mm 2.750 10.16 165°
100.1102.394 2.80mm 2.800 10.00 130°
100.1102.400 2.80mm 2.800 10.16 165°
100.1122.394 2.85mm 2.850 10.00 130°
100.1122.400 2.85mm 2.850 10.16 165°
100.1142.394 2.90mm 2.900 10.00 130°
100.1142.400 2.90mm 2.900 10.16 165°
100.1161.394 2.95mm 2.950 10.00 130°
100.1161.400 2.95mm 2.950 10.16 165°
100.1181.394 3.00mm 3.000 10.00 130°
100.1181.400 3.00mm 3.000 10.16 165°
100.1201.394 3.05mm 3.050 10.00 130°
100.1201.400 3.05mm 3.050 10.16 165°
100.1220.394 3.10mm 3.100 10.00 130°
100.1220.400 3.10mm 3.100 10.16 165°
100.1240.394 3.15mm 3.150 10.00 130°
100.1240.400 3.15mm 3.150 10.16 165°
PCB Ring

Part Numbers above include rings set at 0.800"
For Ringless Part Number, replace series "." with "-" (XXX-XXXX.XXXX)
Additional diameters and special ring colors available upon request

Recommended Cutting Conditions Download PDF
