Printed Circuit Board Series 150
Series 150

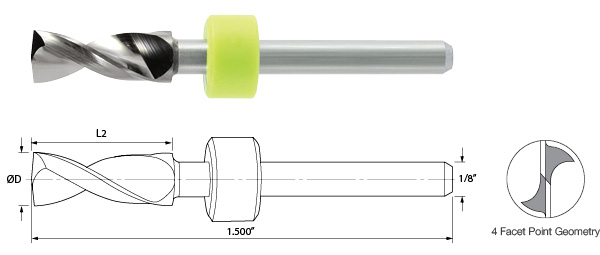

Large Inverse Diameter Non-Undercut Drills
Large sized drills with a reverse shank configuration capable of drilling small to large stacks.
Diameter Range
0.1285" - 0.2610"
3.20mm - 6.70mm
STANDARD Flute Length (Inch)
| Part Number |
Drill Size |
Dimensions (in) | Point Angle |
|
| Cutting Dia. (ØD) |
Flute Length (L2) |
|||
| 150.1285.500 | #30 | 0.1285 | 0.4980 | 165° |
| 150.1360.500 | #29 | 0.1360 | 0.4980 | 165° |
| 150.1405.500 | #28 | 0.1405 | 0.4980 | 165° |
| 150.1440.500 | #27 | 0.1440 | 0.4980 | 165° |
| 150.1520.500 | #24 | 0.1520 | 0.4980 | 165° |
| 150.1540.500 | #23 | 0.1540 | 0.4980 | 165° |
| 150.1562.500 | 5/32" | 0.1562 | 0.4980 | 165° |
| 150.1570.500 | #22 | 0.1570 | 0.4980 | 165° |
| 150.1610.500 | #20 | 0.1610 | 0.4980 | 165° |
| 150.1730.500 | #17 | 0.1730 | 0.4980 | 165° |
| 150.1800.500 | #15 | 0.1800 | 0.4980 | 165° |
| 150.1820.500 | #14 | 0.1820 | 0.4980 | 165° |
| 150.1850.500 | #13-4.70mm | 0.1850 | 0.4980 | 165° |
| 150.1875.500 | 3/16" | 0.1875 | 0.4980 | 165° |
| 150.1890.500 | #12-4.80mm | 0.1890 | 0.4980 | 165° |
| 150.1935.500 | #10 | 0.1935 | 0.4980 | 165° |
| 150.1990.500 | #8 | 0.1990 | 0.4980 | 165° |
| 150.2010.500 | #7 | 0.2010 | 0.4980 | 165° |
| 150.2040.500 | #6 | 0.2040 | 0.4980 | 165° |
| 150.2055.500 | #5 | 0.2055 | 0.4980 | 165° |
| 150.2090.500 | #4 | 0.2090 | 0.4980 | 165° |
| 150.2280.500 | #1 | 0.2280 | 0.4980 | 165° |
| 150.2340.500 | A | 0.2340 | 0.4980 | 165° |
| 150.2380.500 | B | 0.2380 | 0.4980 | 165° |
| 150.2500.500 | 1/4"-6.35mm | 0.2500 | 0.4980 | 165° |
| 150.2570.500 | F | 0.2570 | 0.4980 | 165° |
| 150.2610.500 | G | 0.2610 | 0.4980 | 165° |
STANDARD Flute Length (Metric)
| Part Number |
Drill Size |
Dimensions (mm) | Point Angle |
|
| Cutting Dia. (ØD) |
Flute Length (L2) |
|||
| 150.1260.500 | 3.20mm | 3.200 | 12.65 | 165° |
| 150.1270.500 | 3.23mm | 3.226 | 12.65 | 165° |
| 150.1280.500 | 3.25mm | 3.250 | 12.65 | 165° |
| 150.1299.500 | 3.30mm | 3.300 | 12.65 | 165° |
| 150.1319.500 | 3.35mm | 3.350 | 12.65 | 165° |
| 150.1339.500 | 3.40mm | 3.400 | 12.65 | 165° |
| 150.1358.500 | 3.45mm | 3.450 | 12.65 | 165° |
| 150.1378.500 | 3.50mm | 3.500 | 12.65 | 165° |
| 150.1398.500 | 3.55mm | 3.550 | 12.65 | 165° |
| 150.1417.500 | 3.60mm | 3.600 | 12.65 | 165° |
| 150.1437.500 | 3.65mm | 3.650 | 12.65 | 165° |
| 150.1457.500 | 3.70mm | 3.700 | 12.65 | 165° |
| 150.1476.500 | 3.75mm | 3.750 | 12.65 | 165° |
| 150.1496.500 | 3.80mm | 3.800 | 12.65 | 165° |
| 150.1516.500 | 3.85mm | 3.850 | 12.65 | 165° |
| 150.1535.500 | 3.90mm | 3.900 | 12.65 | 165° |
| 150.1555.500 | 3.95mm | 3.950 | 12.65 | 165° |
| 150.1575.500 | 4.00mm | 4.000 | 12.65 | 165° |
| 150.1594.500 | 4.05mm | 4.050 | 12.65 | 165° |
| 150.1614.500 | 4.10mm | 4.100 | 12.65 | 165° |
| 150.1634.500 | 4.15mm | 4.150 | 12.65 | 165° |
| 150.1654.500 | 4.20mm | 4.200 | 12.65 | 165° |
| 150.1673.500 | 4.25mm | 4.250 | 12.65 | 165° |
| 150.1693.500 | 4.30mm | 4.300 | 12.65 | 165° |
| 150.1713.500 | 4.35mm | 4.350 | 12.65 | 165° |
| 150.1732.500 | 4.40mm | 4.400 | 12.65 | 165° |
| 150.1752.500 | 4.45mm | 4.450 | 12.65 | 165° |
| 150.1772.500 | 4.50mm | 4.500 | 12.65 | 165° |
| 150.1791.500 | 4.55mm | 4.550 | 12.65 | 165° |
| 150.1811.500 | 4.60mm | 4.600 | 12.65 | 165° |
| 150.1831.500 | 4.65mm | 4.650 | 12.65 | 165° |
| 150.1850.500 | #13-4.70mm | 4.700 | 12.65 | 165° |
| 150.1870.500 | 4.75mm | 4.750 | 12.65 | 165° |
| 150.1890.500 | #12-4.80mm | 4.800 | 12.65 | 165° |
| 150.1909.500 | 4.85mm | 4.850 | 12.65 | 165° |
| 150.1929.500 | 4.90mm | 4.900 | 12.65 | 165° |
| 150.1949.500 | 4.95mm | 4.950 | 12.65 | 165° |
| 150.1968.500 | 5.00mm | 5.000 | 12.65 | 165° |
| 150.1988.500 | 5.05mm | 5.050 | 12.65 | 165° |
| 150.2008.500 | 5.10mm | 5.100 | 12.65 | 165° |
| 150.2028.500 | 5.15mm | 5.150 | 12.65 | 165° |
| 150.2047.500 | 5.20mm | 5.200 | 12.65 | 165° |
| 150.2067.500 | 5.25mm | 5.250 | 12.65 | 165° |
| 150.2087.500 | 5.30mm | 5.300 | 12.65 | 165° |
| 150.2106.500 | 5.35mm | 5.350 | 12.65 | 165° |
| 150.2126.500 | 5.40mm | 5.400 | 12.65 | 165° |
| 150.2146.500 | 5.45mm | 5.450 | 12.65 | 165° |
| 150.2165.500 | 5.50mm | 5.500 | 12.65 | 165° |
| 150.2185.500 | 5.55mm | 5.550 | 12.65 | 165° |
| 150.2205.500 | 5.60mm | 5.600 | 12.65 | 165° |
| 150.2224.500 | 5.65mm | 5.650 | 12.65 | 165° |
| 150.2244.500 | 5.70mm | 5.700 | 12.65 | 165° |
| 150.2264.500 | 5.75mm | 5.750 | 12.65 | 165° |
| 150.2283.500 | 5.80mm | 5.800 | 12.65 | 165° |
| 150.2302.500 | 5.85mm | 5.850 | 12.65 | 165° |
| 150.2323.500 | 5.90mm | 5.900 | 12.65 | 165° |
| 150.2343.500 | 5.95mm | 5.950 | 12.65 | 165° |
| 150.2362.500 | 6.00mm | 6.000 | 12.65 | 165° |
| 150.2382.500 | 6.05mm | 6.050 | 12.65 | 165° |
| 150.2402.500 | 6.10mm | 6.100 | 12.65 | 165° |
| 150.2421.500 | 6.15mm | 6.150 | 12.65 | 165° |
| 150.2441.500 | 6.20mm | 6.200 | 12.65 | 165° |
| 150.2461.500 | 6.25mm | 6.250 | 12.65 | 165° |
| 150.2480.500 | 6.30mm | 6.300 | 12.65 | 165° |
| 150.2500.500 | 1/4"-6.35mm | 6.350 | 12.65 | 165° |
| 150.2520.500 | 6.40mm | 6.400 | 12.65 | 165° |
| 150.2559.500 | 6.50mm | 6.500 | 12.65 | 165° |
| 150.2579.500 | 6.55mm | 6.550 | 12.65 | 165° |
| 150.2598.500 | 6.60mm | 6.600 | 12.649 | 165° |
| 150.2618.500 | 6.65mm | 6.650 | 12.649 | 165° |
| 150.2638.500 | 6.70mm | 6.700 | 12.649 | 165° |
Part Numbers above include rings set at 0.800"
For Ringless Part Number, replace series "." with "-" (XXX-XXXX.XXXX)
Additional diameters and special ring colors available upon request
