Printed Circuit Board Series 560
Series 560
High Helix
Accuracy Oriented Advanced Non-Undercut Drills
Micro and small sized drills with standard flutes capable of drilling small to medium stacks.
Diameter Range
0.0040" - 0.0145"
0.20mm - 0.45mm
STANDARD Flute Length (Inch)
| Part Number |
Drill Size |

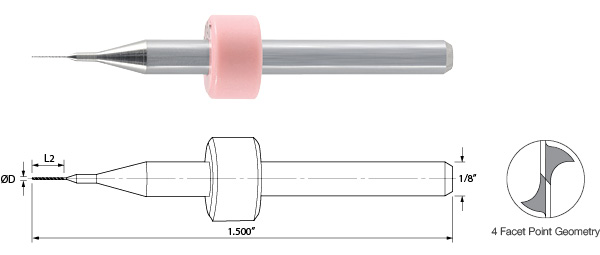

Dimensions (in) | Point Angle |
|
| Cutting Dia. (ØD) |
Flute Length (L2) |
|||
| 560.0040.040 | 0.0040" | 0.0040 | 0.0400 | 130° |
| 560.0091.150 | #89 | 0.0091 | 0.1500 | 130° |
| 560.0125.220 | #82 | 0.0125 | 0.2200 | 130° |
| 560.0130.220 | #81 | 0.0130 | 0.2200 | 130° |
| 560.0145.220 | #79 | 0.0145 | 0.2200 | 130° |
STANDARD Flute Length (Metric)
| Part Number |
Drill Size |
Dimensions (mm) | Point Angle |
|
| Cutting Dia. (ØD) |
Flute Length (L2) |
|||
| 560.0079.118 | 0.20mm | 0.200 | 3.00 | 130° |
| 560.0098.150 | 0.25mm | 0.250 | 3.81 | 130° |
| 560.0118.220 | 0.30mm | 0.300 | 5.59 | 130° |
| 560.0157.220 | 0.40mm | 0.400 | 5.59 | 130° |
| 560.0177.220 | 0.45mm | 0.450 | 5.59 | 130° |
Part Numbers above include rings set at 0.800"
For Ringless Part Number, replace series "." with "-" (XXX-XXXX.XXXX)
Additional diameters and special ring colors available upon request
