Printed Circuit Board Series 580
Series 580
High Helix
Accuracy Oriented Advanced Non-Undercut Drills
Micro and small sized drills with extended flutes capable of drilling medium to high stacks.
Diameter Range
0.0071" - 0.0180"
0.10mm - 0.45mm

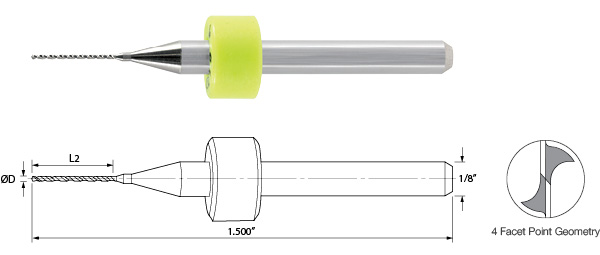

EXTENDED Flute Length (Inch)
| Part Number |
Drill Size |
Dimensions (in) | Point Angle |
|
| Cutting Dia. (ØD) |
Flute Length (L2) |
|||
| 580.0071.150 | #94 | 0.0071 | 0.1500 | 130° |
| 580.0105.220 | #86 | 0.0105 | 0.2200 | 130° |
| 580.0135.280 | #80 | 0.0135 | 0.2800 | 130° |
| 580.0145.280 | #79 | 0.0145 | 0.2800 | 130° |
| 580.0160.295 | #78 | 0.0160 | 0.2950 | 130° |
| 580.0180.295 | #77 | 0.0180 | 0.2950 | 130° |
EXTENDED Flute Length (Metric)
| Part Number |
Drill Size |
Dimensions (mm) | Point Angle |
|
| Cutting Dia. (ØD) |
Flute Length (L2) |
|||
| 580.0040.079 | 0.10mm | 0.100 | 2.01 | 130° |
| 580.0050.087 | 0.13mm | 0.127 | 2.21 | 130° |
| 580.0059.118 | 0.15mm | 0.150 | 3.00 | 130° |
| 580.0079.157 | 0.20mm | 0.201 | 4.00 | 130° |
| 580.0157.295 | 0.40mm | 0.400 | 7.49 | 130° |
| 580.0177.295 | 0.45mm | 0.450 | 7.49 | 130° |
Part Numbers above include rings set at 0.800"
For Ringless Part Number, replace series "." with "-" (XXX-XXXX.XXXX)
Additional diameters and special ring colors available upon request
