Printed Circuit Board Series 750
Series 750
Reduced Deflection Slot Non-Undercut Drills
Small and medium sized drills with extended flutes capable of slot drilling medium to high stacks.
Diameter Range
0.0420" - 0.0465"
0.95mm - 2.00mm
EXTENDED Flute Length (Inch)
| Part Number |
Drill Size |
Dimensions (in) | Point Angle |
|

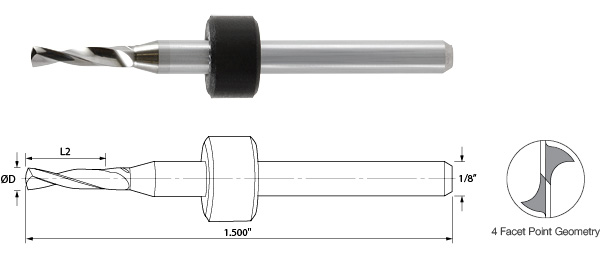

| Cutting Dia. (ØD) |
Flute Length (L2) |
|||
| 750.0420.340 | #58 | 0.0420 | 0.3540 | 150° |
| 750.0465.340 | #56 | 0.0465 | 0.3500 | 150° |
EXTENDED Flute Length (Metric)
| Part Number |
Drill Size |
Dimensions (mm) | Point Angle |
|
| Cutting Dia. (ØD) |
Flute Length (L2) |
|||
| 750.0374.340 | 0.95mm | 0.950 | 8.89 | 150° |
| 750.0394.340 | 1.00mm | 1.001 | 8.89 | 150° |
| 750.0413.340 | 1.05mm | 1.049 | 8.89 | 150° |
| 750.0433.340 | 1.10mm | 1.100 | 8.99 | 150° |
| 750.0453.340 | 1.15mm | 1.151 | 8.81 | 150° |
| 750.0472.340 | 1.20mm | 1.199 | 8.89 | 150° |
| 750.0492.340 | 1.25mm | 1.250 | 8.94 | 150° |
| 750.0512.340 | 1.30mm | 1.300 | 8.89 | 150° |
| 750.0531.340 | 1.35mm | 1.349 | 8.97 | 150° |
| 750.0551.340 | 1.40mm | 1.400 | 8.99 | 150° |
| 750.0571.340 | 1.45mm | 1.450 | 9.02 | 150° |
| 750.0591.340 | 1.50mm | 1.501 | 9.02 | 150° |
| 750.0610.340 | 1.55mm | 1.549 | 9.02 | 150° |
| 750.0630.340 | 1.60mm | 1.600 | 8.89 | 150° |
| 750.0650.340 | 1.65mm | 1.651 | 9.02 | 150° |
| 750.0669.340 | 1.70mm | 1.699 | 9.02 | 150° |
| 750.0689.340 | 1.75mm | 1.750 | 9.02 | 150° |
| 750.0709.340 | 1.80mm | 1.801 | 8.64 | 150° |
| 750.0728.340 | 1.85mm | 1.849 | 8.64 | 150° |
| 750.0748.340 | 1.90mm | 1.900 | 9.02 | 150° |
| 750.0768.340 | 1.95mm | 1.951 | 8.59 | 150° |
| 750.0787.340 | 2.00mm | 1.999 | 9.02 | 150° |
Part Numbers above include rings set at 0.800"
For Ringless Part Number, replace series "." with "-" (XXX-XXXX.XXXX)
Additional diameters and special ring colors available upon request
