Printed Circuit Board Series 1500
Series 1500
One-Flute End Mills for Soft Materials
Single flute end mill designed for routing or milling printed circuit boards, plexiglass, soft materials, or soft metals.
Diameter Range
0.0312" - 0.1250"
STANDARD Flute Length (Inch)
| Part Number |
End Mill Size |

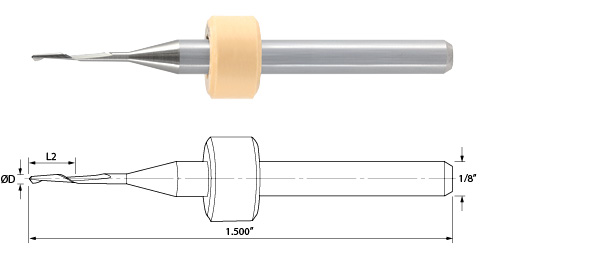

Dimensions (in) | Helix Angle | End Style |
|
| Cutting Dia. (ØD) |
Flute Length (L2) |
||||
| 1500.0312.150D | 1/32" | 0.0312 | 0.1500 | 30° | Drill Point |
| 1500.0625.200D | 1/16" | 0.0625 | 0.2000 | 30° | Drill Point |
| 1500.0625.250 | 1/16" | 0.0625 | 0.2500 | 30° | Square |
| 1500.0938.375 | 3/32" | 0.0938 | 0.3700 | 30° | Square |
| 1500.1250.400 | 1/8" | 0.1250 | 0.4000 | 30° | Square |
Part Numbers above include rings set at 0.800"
For Ringless Part Number, replace series "." with "-" (XXX-XXXX.XXXX)
Additional diameters and special ring colors available upon request
