Printed Circuit Board Series 1560
Series 1560
One-Flute End Mills for Flexible Laminates
Single flute end mill designed for routing or milling flexible printed circuit boards, plexiglass, or soft materials.
Diameter Range
0.80mm - 2.00mm

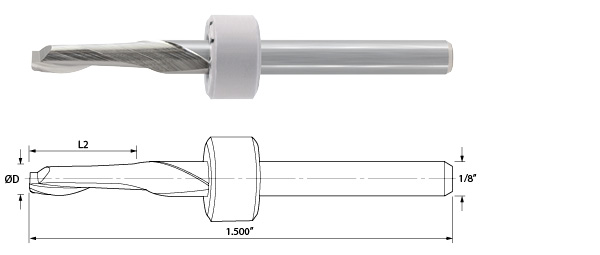

STANDARD Flute Length (Metric)
| Part Number |
End Mill Size |
Dimensions (mm) | Helix Angle |
|
| Cutting Dia. (ØD) |
Flute Length (L2) |
|||
| 1560.0315.094 | 0.80mm | 0.800 | 2.39 | 30° |
| 1560.0394.118 | 1.00mm | 1.000 | 3.00 | 30° |
| 1560.0472.142 | 1.20mm | 1.200 | 3.61 | 30° |
| 1560.0630.189 | 1.60mm | 1.600 | 4.80 | 30° |
| 1560.0787.236 | 2.00mm | 2.000 | 6.00 | 30° |
Part Numbers above include rings set at 0.800"
For Ringless Part Number, replace series "." with "-" (XXX-XXXX.XXXX)
Additional diameters and special ring colors available upon request
