Printed Circuit Board Series 1735
Series 1735
Three-Flute End Mills for Clean Edges
Three flute zero helix end mill designed for side routing or milling printed circuit boards, gold tab connectors, soft materials, or soft metals.
Diameter Range
0.1250"
0.80mm - 2.40mm
STANDARD Flute Length (Inch)
| Part Number |
End Mill Size |

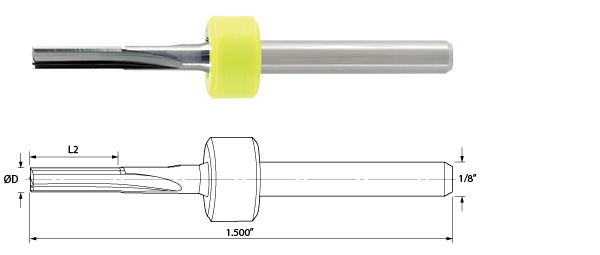

Dimensions (in) | Helix Angle |
|
| Cutting Dia. (ØD) |
Flute Length (L2) |
1735.1250.500 | 0.1250" | 0.1250 | 0.5000 | 0° |
STANDARD Flute Length (Metric)
| Part Number |
End Mill Size |
Dimensions (mm) | Helix Angle |
|
| Cutting Dia. (ØD) |
Flute Length (L2) |
|||
| 1735.0315.138 | 0.80mm | 0.800 | 3.50 | 0° |
| 1735.0630.315 | 1.60mm | 1.600 | 8.00 | 0° |
| 1735.0945.315 | 2.40mm | 2.400 | 8.00 | 0° |
Part Numbers above include rings set at 0.800"
For Ringless Part Number, replace series "." with "-" (XXX-XXXX.XXXX)
Additional diameters and special ring colors available upon request
