Printed Circuit Board Series 1730
Series 1730
Three-Flute Zero Helix
No End Style (Safe End) End Mills
Three flute zero helix cutter designed for side routing printed circuit boards, gold tab connectors, soft materials, or soft metals.
Diameter Range
0.80mm - 2.40mm
STANDARD Flute Length (Metric)
| Part Number |
End Mill Size |

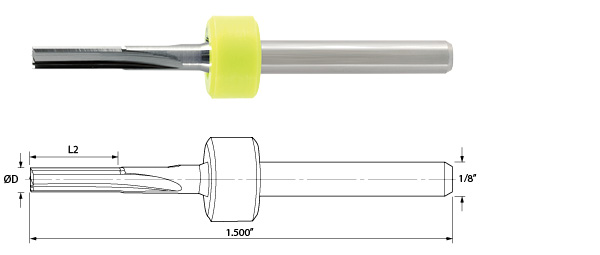

Dimensions (mm) | Helix Angle |
|
| Cutting Dia. (ØD) |
Flute Length (L2) |
|||
| 1730.0315.120 | 0.80mm | 0.800 | 3.05 | 0° |
| 1730.0630.315 | 1.60mm | 1.600 | 8.00 | 0° |
| 1730.0945.394 | 2.40mm | 2.400 | 10.00 | 0° |
Part Numbers above include rings set at 0.800"
For Ringless Part Number, replace series "." with "-" (XXX-XXXX.XXXX)
Additional diameters and special ring colors available upon request
