Printed Circuit Board Series 1300
Series 1300
Gold Tab Premium Edge Routers
Multiple flute cutter designed for routing printed circuit board gold tab connectors and plated solder features.
Diameter Range
1.60mm - 2.40mm
STANDARD Flute Length (Metric)
| Part Number |
Router Size |

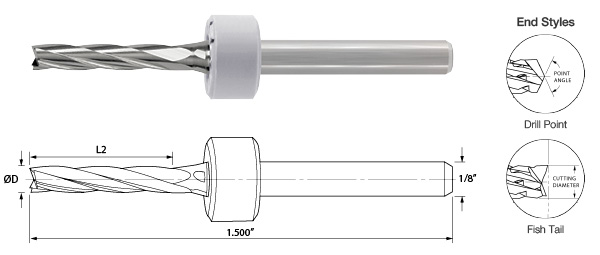

Dimensions (mm) | End Style |
|
| Cutting Dia. (ØD) |
Flute Length (L2) |
|||
| 1300.0630.310 | 1.60mm | 1.588 | 7.87 | Drill Point |
| 1300.0945.395 | 2.40mm | 2.400 | 10.03 | Fish Tail |
Part Numbers above include rings set at 0.800"
For Ringless Part Number, replace series "." with "-" (XXX-XXXX.XXXX)
Additional diameters and special ring colors available upon request
