Printed Circuit Board Series 2300
Series 2300
Chipbreaker Updraft Fish Tail Routers

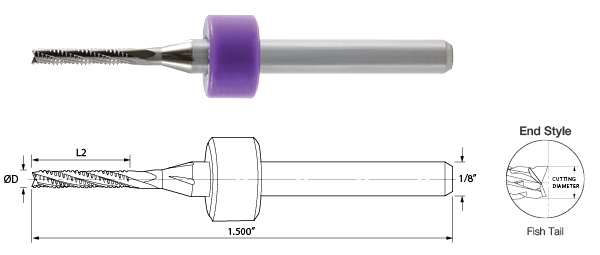

Chipbreaker style updraft router designed for superior edge finish on external and internal cuts.
Diameter Range
0.0500" - 0.1250"
0.80mm - 3.00mm
STANDARD Flute Length (Inch)
| Part Number |
Router Size |
Dimensions (in) | End Style |
|
| Cutting Dia. (ØD) |
Flute Length (L2) |
|||
| 2300.0500.256 | 0.0500" | 0.0500 | 0.2560 | Fish Tail |
| 2300.1250.472 | 1/8" | 0.1250 | 0.4720 | Fish Tail |
STANDARD Flute Length (Metric)
| Part Number |
Router Size |
Dimensions (mm) | End Style |
|
| Cutting Dia. (ØD) |
Flute Length (L2) |
|||
| 2300.0315.197 | 0.80mm | 0.800 | 5.00 | Fish Tail |
| 2300.0354.197 | 0.90mm | 0.900 | 5.00 | Fish Tail |
| 2300.0394.256 | 1.00mm | 1.000 | 6.50 | Fish Tail |
| 2300.0472.256 | 1.20mm | 1.200 | 6.50 | Fish Tail |
| 2300.0512.256 | 1.30mm | 1.300 | 6.50 | Fish Tail |
| 2300.0551.256 | 1.40mm | 1.400 | 6.50 | Fish Tail |
| 2300.0591.315 | 1.50mm | 1.500 | 8.00 | Fish Tail |
| 2300.0630.315 | 1.60mm | 1.600 | 8.00 | Fish Tail |
| 2300.0669.315 | 1.70mm | 1.700 | 8.00 | Fish Tail |
| 2300.0709.315 | 1.80mm | 1.800 | 8.00 | Fish Tail |
| 2300.0748.315 | 1.90mm | 1.900 | 8.00 | Fish Tail |
| 2300.0787.315 | 2.00mm | 2.000 | 8.00 | Fish Tail |
| 2300.0787.394 | 2.00mm | 2.000 | 10.00 | Fish Tail |
| 2300.0827.394 | 2.10mm | 2.100 | 10.00 | Fish Tail |
| 2300.0945.394 | 2.40mm | 2.400 | 10.00 | Fish Tail |
| 2300.0984.394 | 2.50mm | 2.500 | 10.00 | Fish Tail |
| 2300.1004.394 | 2.55mm | 2.550 | 10.00 | Fish Tail |
| 2300.1181.394 | 3.00mm | 3.000 | 10.00 | Fish Tail |
Part Numbers above include rings set at 0.800"
For Ringless Part Number, replace series "." with "-" (XXX-XXXX.XXXX)
Additional diameters and special ring colors available upon request
