Printed Circuit Board Series 2300
Series 2300
Chipbreaker Updraft Drill Point Routers

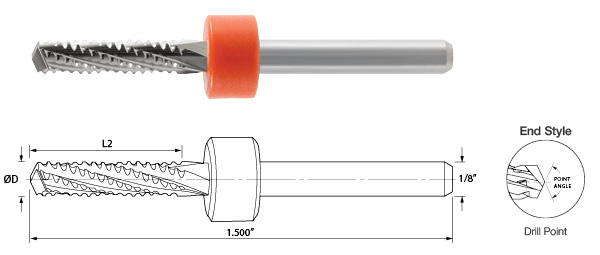

Chipbreaker style updraft router designed for superior edge finish on external and internal cuts.
Diameter Range
0.0500" - 0.1250"
0.50mm - 2.40mm
STANDARD Flute Length (Inch)
| Part Number |
Router Size |
Dimensions (in) | End Style |
|
| Cutting Dia. (ØD) |
Flute Length (L2) |
|||
| 2300.0500.256D | 0.0500" | 0.0500 | 0.2560 | Drill Point |
| 2300.1250.472D | 1/8" | 0.1250 | 0.4720 | Drill Point |
STANDARD Flute Length (Metric)
| Part Number |
Router Size |
Dimensions (mm) | End Style |
|
| Cutting Dia. (ØD) |
Flute Length (L2) |
|||
| 2300.0197.118D | 0.50mm | 0.500 | 3.00 | Drill Point |
| 2300.0315.197D | 0.80mm | 0.800 | 5.00 | Drill Point |
| 2300.0354.256D | 0.90mm | 0.900 | 6.50 | Drill Point |
| 2300.0394.256D | 1.00mm | 1.000 | 6.50 | Drill Point |
| 2300.0472.256D | 1.20mm | 1.200 | 6.50 | Drill Point |
| 2300.0512.256D | 1.30mm | 1.300 | 6.50 | Drill Point |
| 2300.0551.256D | 1.40mm | 1.400 | 6.50 | Drill Point |
| 2300.0630.256D | 1.60mm | 1.600 | 6.50 | Drill Point |
| 2300.0630.315D | 1.60mm | 1.600 | 8.00 | Drill Point |
| 2300.0787.394D | 2.00mm | 2.000 | 10.00 | Drill Point |
| 2300.0945.394D | 2.40mm | 2.400 | 10.00 | Drill Point |
Part Numbers above include rings set at 0.800"
For Ringless Part Number, replace series "." with "-" (XXX-XXXX.XXXX)
Additional diameters and special ring colors available upon request
