Printed Circuit Board Series 1600
Series 1600

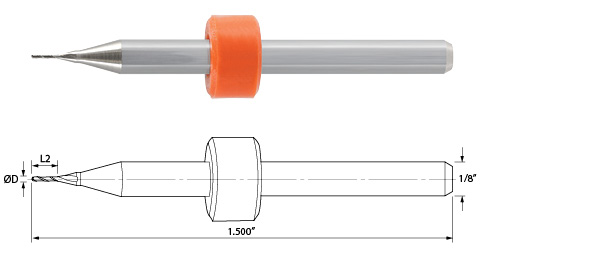

Two-Flute End Mills
Two flute end mill designed for routing or milling printed circuit boards, plexiglass, soft materials, or soft metals.
Diameter Range
0.0312" - 0.1250"
0.30mm - 3.00mm
STANDARD Flute Length (Inch)
| Part Number |
End Mill Size |
Dimensions (in) | Helix Angle |
|
| Cutting Dia. (ØD) |
Flute Length (L2) |
|||
| 1600.0312.120 | 1/32" | 0.0312 | 0.1200 | 30° |
| 1600.0500.200 | 0.0500" | 0.0500 | 0.2000 | 30° |
| 1600.0625.250 | 1/16" | 0.0625 | 0.2500 | 30° |
| 1600.0938.390 | 3/32" | 0.0938 | 0.3900 | 30° |
| 1600.1250.500 | 1/8" | 0.1250 | 0.5000 | 30° |
STANDARD Flute Length (Metric)
| Part Number |
End Mill Size |
Dimensions (mm) | Helix Angle |
|
| Cutting Dia. (ØD) |
Flute Length (L2) |
|||
| 1600.0118.045 | 0.30mm | 0.300 | 1.14 | 30° |
| 1600.0150.050 | 0.38mm | 0.380 | 1.27 | 30° |
| 1600.0157.079 | 0.40mm | 0.400 | 2.00 | 30° |
| 1600.0177.079 | 0.45mm | 0.450 | 2.00 | 30° |
| 1600.0197.079 | 0.50mm | 0.500 | 2.00 | 30° |
| 1600.0197.118 | 0.50mm | 0.500 | 3.00 | 30° |
| 1600.0236.079 | 0.60mm | 0.600 | 2.00 | 30° |
| 1600.0276.120 | 0.70mm | 0.700 | 3.05 | 30° |
| 1600.0315.120 | 0.80mm | 0.800 | 3.05 | 30° |
| 1600.0315.157 | 0.80mm | 0.800 | 4.00 | 30° |
| 1600.0354.120 | 0.90mm | 0.900 | 3.05 | 30° |
| 1600.0394.120 | 1.00mm | 1.000 | 3.05 | 30° |
| 1600.0394.200 | 1.00mm | 1.000 | 5.08 | 30° |
| 1600.0472.138 | 1.20mm | 1.200 | 3.50 | 30° |
| 1600.0472.210 | 1.20mm | 1.200 | 5.33 | 30° |
| 1600.0551.195 | 1.40mm | 1.400 | 4.95 | 30° |
| 1600.0630.250 | 1.60mm | 1.600 | 6.35 | 30° |
| 1600.0630.315 | 1.60mm | 1.600 | 8.00 | 30° |
| 1600.0787.340 | 2.00mm | 2.000 | 8.64 | 30° |
| 1600.0945.390 | 2.40mm | 2.400 | 9.91 | 30° |
| 1600.1181.500 | 3.00mm | 3.000 | 12.70 | 30° |
Part Numbers above include rings set at 0.800"
For Ringless Part Number, replace series "." with "-" (XXX-XXXX.XXXX)
Additional diameters and special ring colors available upon request
