Printed Circuit Board Series 1660
Series 1660
Two-Flute End Mills for Flexible Laminates
Two flute end mill designed for routing or milling flexible printed circuit boards, plexiglass, or soft materials.
Diameter Range
0.80mm - 1.60mm
STANDARD Flute Length (Metric)
| Part Number |
End Mill Size |

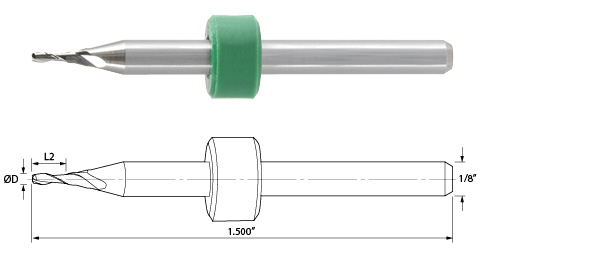

Dimensions (mm) | Helix Angle |
|
| Cutting Dia. (ØD) |
Flute Length (L2) |
|||
| 1660.0315.093 | 0.80mm | 0.800 | 2.36 | 30° |
| 1660.0630.295 | 1.60mm | 1.600 | 7.50 | 16° |
Part Numbers above include rings set at 0.800"
For Ringless Part Number, replace series "." with "-" (XXX-XXXX.XXXX)
Additional diameters and special ring colors available upon request
